Cartridge Filtration

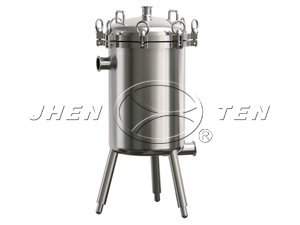

Multi Fluid Sanitary Filter Housing

Multi Fluid Sanitary Filter Housing

Model: JTGLD

Brand: JHENTEN

Medium & Small Flow Rate Sanitary Filter
JTGLD  Multi Fluid Sanitary Filter Housing can meet requirement of  medium & small flow rate.

Detail Description

The structure design and manufacture in accordance with the sanitary grade. It's no dead corner, meet " GMP" standard , easy to clean, drain thoroughly, no residual liquid.

For the application of some very harsh cleaning, the filter faceplate made of detachable, full angle cleaning


Feature

The ultra high level of polishing, the inner surface polished to 0.3μm Ra. the outer surface to reach 0.4μm, the absolute hygienic level polishing.
The ultra high level of polishing, the inner surface polished to 0.3μm Ra. the outer surface to reach 0.4μm, the absolute hygienic level polishing.
Small specification filter installation adjusting nut at the bottom of the Stabilizer blade, can adjust the height of the filter, easy to use

Application

Pharmaceutical industry: all kinds of antibiotics and other liquid filtration.
Food and beverage industry: wine , mineral water, drinking water filtration.
Oil industry: oil field water injection filtration
Electronics industry: high purity water filtration
Chemical industry: all kinds of organic solvent, acid, lye filtration.

Surface Finish

Treatment Type

mechanical polishing,
electrolytic polishing

Polishing precision

Inner surface Ra≤0.3μm ,
Outside surface Ra≤0.4μm.


Operating Conditions

Max Operating pressure

0.6MPa、1.0MPa

Max Operating Temp.

150℃

Sterilization

Online or steam sterilization:
121℃/30min


Material

Filter shell

304, 316L

Vent valve, drain valve

304, 316L

Eyebolt

304

Stabilizer blade

304

O-ring

EPDM, PTFE, Viton, Silicone


Connection

Shell  connection

Flange ( Eyebolt)

In-outlet N1, N2

quick-open

Pressure gauge N3 (Optional)

1.5" tri-clamp

Vent valve N4  (optional )

1/2" tri-clamp

Drain valve N5 (optional )

1/2" tri-clamp

Cartridges connection

222, 226 (sanitary grade);

DOE (industrial grade)


Structure

Dimension Parameters

3R(4R)

5R(6R)

10”

20”

30”

40”

10”

20”

30”

40”

A:Total height (excluding pressure gauge)

760

1010

1260

1510

780

1030

1280

1530

B:The distance from inlet to center

160

160

C:Diameter

Φ204

Φ235

D:The height from in-outlet N1, N2 to the ground

200

200

E:The height from drain valve N5 to the ground

130

130

In-outletN1, N2 dimension

1.5”

2”


7R(8R)

10”

20”

30”

40”

805

1055

1305

1555

200

Φ273

200

130

1.5”

The above-mentioned data is the standard, it can customize according tocustomer's requirements.


SelectionTable


[Qty. of cartridge]

[Model of cartridge]

[Cartridges connection]

[Shell material]

[In-outlet Connection]

[O-ring]

JTGLD

5R

20

S

4

K

E


3R=3pcs

10=10”Cartridge

S=226 (sanitary grade)

4= 304

K=Tri-clamp

E=EPDM


5R=5pcs

20=20”Cartridge

T=222 (sanitary grade)

6= 316L


P=PTFE


7R=7pcs

30=30”Cartridge

D=DOE(industrial grade)



V=Viton


9R=9pcs

40=40”Cartridge




S=Silicone


12R=12pcs
